Spring MVC Hibernate MySQL Maven Integration CRUD Example

In This Article, I would like to explain How To Integrate Spring MVC With Hibernate, MySQL and Maven and We will See One basic CRUD Operations Example.

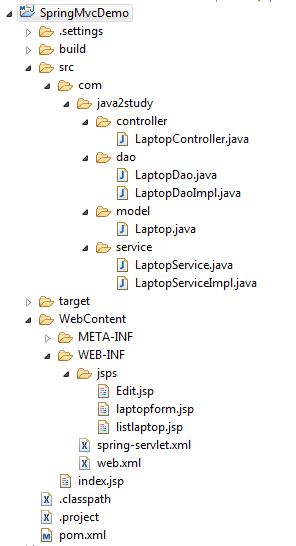

The Project Structure


Tools Used In this Article
JavaFrameworksDatabaseSetverTools
Java 1.8Spring 4.3.2
Hibernate 4.3.2
MySQLTomcat 8.0.43Maven 4.0.0
Ecclipse Neon
Add Maven Dependenciespom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <groupId>SpringMvcDemo</groupId>
 <artifactId>SpringMvcDemo</artifactId>
 <version>0.0.1-SNAPSHOT</version>
 <packaging>war</packaging>
 <dependencies>
  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-webmvc</artifactId>
   <version>4.3.2.RELEASE</version>
  </dependency>
                  <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-jdbc</artifactId>
   <version>4.3.2.RELEASE</version>
  </dependency>
   <dependency>
   <groupId>org.springframework</groupId>
   <artifactId>spring-orm</artifactId>
   <version>4.3.2.RELEASE</version>
  </dependency>
  <dependency>
   <groupId>javax.servlet</groupId>
   <artifactId>javax.servlet-api</artifactId>
   <version>3.1.0</version>
  </dependency>
  <dependency>
   <groupId>junit</groupId>
   <artifactId>junit</artifactId>
   <version>3.8.1</version>
   <scope>test</scope>
  </dependency>
  <dependency>
                <groupId>commons-dbcp</groupId>
               <artifactId>commons-dbcp</artifactId>
                 <version>1.2.2</version>
               </dependency>
  <dependency>
   <groupId>mysql</groupId>
   <artifactId>mysql-connector-java</artifactId>
   <version>5.1.8</version>
  </dependency>
  <!-- https://mvnrepository.com/artifact/org.hibernate/hibernate-core -->
  <dependency>
   <groupId>org.hibernate</groupId>
   <artifactId>hibernate-core</artifactId>
   <version>4.3.2.Final</version>
  </dependency>
                <dependency>
   <groupId>jstl</groupId>
   <artifactId>jstl</artifactId>
   <version>1.2</version>
  </dependency>

 </dependencies>
 <build>
  <sourceDirectory>src</sourceDirectory>
  <plugins>
   <plugin>
    <artifactId>maven-compiler-plugin</artifactId>
    <version>3.1</version>
    <configuration>
     <source>1.8</source>
     <target>1.8</target>
    </configuration>
   </plugin>
   <plugin>
    <artifactId>maven-war-plugin</artifactId>
    <version>2.4</version>
    <configuration>
     <warSourceDirectory>WebContent</warSourceDirectory>
     <failOnMissingWebXml>false</failOnMissingWebXml>
    </configuration>
   </plugin>
  </plugins>
 </build>

</project>
web.xml
<web-app xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    ;xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
    version="3.0">
    <display-name>Spring MVC  Web Application</display-name>
     <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>
    <servlet>
  <servlet-name>spring</servlet-name>
  <servlet-class>
   org.springframework.web.servlet.DispatcherServlet
        </servlet-class>
  <load-on-startup>1</load-on-startup>
 </servlet>
 <servlet-mapping>
  <servlet-name>spring</servlet-name>
  <url-pattern>/</url-pattern>
 </servlet-mapping>
    </web-app>
In web.xml we have declared dispatcher servlet which is known as front controller.
Now create Spring configuration file spring-servlet.xml
spring-servlet.xml
<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:context="http://www.springframework.org/schema/context"
 xmlns:mvc="http://www.springframework.org/schema/mvc"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.0.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">

 <context:component-scan base-package="com.java2study" />
    <bean id="dataSource"
  class="org.apache.commons.dbcp.BasicDataSource">
  <property name="driverClassName" value="com.mysql.jdbc.Driver" />
  <t;property name="url" value="jdbc:mysql://localhost:3306/bala" />
  <property name="username" value="root" />
  <property name="password" value="root123" />
 </bean>

 <bean id="sessionFactory"
  class="org.springframework.orm.hibernate4.LocalSessionFactoryBean">
  <property name="dataSource" ref="dataSource" />
  <property name="annotatedClasses">
   <list>
    <value>com.java2study.model.Laptop</value>
   <list>
  <property>
  <property name="hibernateProperties">
   <props>
    <prop key="hibernate.dialect">org.hibernate.dialect.MySQL5Dialect</prop>
    <prop key="hibernate.show_sql">true</prop>
    <prop key="hibernate.hbm2ddl.auto">update</prop>
   <props>
  <property>
 </bean>
 <bean id="txManager"
  class="org.springframework.orm.hibernate4.HibernateTransactionManager">
  <property name="sessionFactory" ref="sessionFactory" />
 </bean>
 <bean
  class="org.springframework.web.servlet.view.InternalResourceViewResolver">
  <property name="prefix">
   <value>/WEB-INF/jsps/</value>
  <property>
  <property name=class = "jvariable">"suffix"
>
<value>.jsp<value>
<property>
</bean>
<mvc:annotation-driven />
</beans>
create Model class
Laptop.java
package com.java2study.model;
import java.io.Serializable;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.Table;
@Table
@Entity
public class Laptop implements Serializable{
 @Id
 @GeneratedValue
 private int laptopId;
 @Column
 private String name;
 @Column
 private double price;
 public int getLaptopId() {
  return laptopId;
 }
 public void setLaptopId(int laptopId) {
  this.laptopId = laptopId;
 }
 public String getName() {
  return name;
 }
 public void setName(String name) {
  this.name = name;
 }
 public double getPrice() {
  return price;
 }
 public void setPrice(double price) {
  this.price = price;
 }


}
Create Dao Classes
LaptopDao.java
package com.java2study.dao;
import java.util.List;
import com.java2study.model.Laptop;
public interface LaptopDao {
 public void addLaptop(Laptop laptop);
 public List listLaptop();
 public Laptop getLaptopById(int laptopId);
 public void updateLaptop(Laptop laptop);
 public void deletelaptop(int laptopId);
}
LaptopDaoImpl.java
package com.java2study.dao;
import java.io.Serializable;
import java.util.List;
import org.hibernate.Query;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.Transaction;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;

import com.java2study.model.Laptop;
@Repository
public class LaptopDaoImpl implements LaptopDao {
 @Autowired
 private SessionFactorysessionFactory;

 @Override
 public void addLaptop(Laptop laptop) {

  Session session = sessionFactory.openSession();
  Transaction tx = session.beginTransaction();
  session.save(laptop);
  tx.commit();
  session.close();

 }
 @Override
 public List listLaptop() {
  Session session=sessionFactory.openSession();
  Query query=session.createQuery("from Laptop l");
  List list=query.list();
  session.close();
  return list;
 }
 @Override
 public Laptop getLaptopById(int laptopId) {
  // TODO Auto-generated method stub
  Session session = sessionFactory.openSession();
  Transaction tx = session.beginTransaction();
  Laptop laptop = (Laptop)session.get(Laptop.class, laptopId);
  tx.commit();
  session.close();
  return laptop;
 }
 @Override
 public void updateLaptop(Laptop laptop)
 {
  Session session=sessionFactory.openSession();
  Transaction tx = session.beginTransaction();

  session.saveOrUpdate(laptop);
  System.out.println("update..................");
  tx.commit();
  session.close();
 }
 @Override
 public void  deletelaptop(int laptopId) {
  Session session = sessionFactory.openSession();
  Transaction tx = session.beginTransaction();
  Laptop laptop = (Laptop) session.get(Laptop.class, laptopId);
  session.delete(laptop);
  tx.commit();
  session.close();

 }

}
we need to declare the Dao implementation class with @Repository annotation.
Now create Service classes
LaptopService.java
package com.java2study.service;
>import java.util.List;
import com.java2study.model.Laptop;
public interface LaptopService {
 public void  addLaptop(Laptop laptop);
 public List listLaptop();
 public Laptop getLaptopById(int laptopId);
 public void updateLaptop(Laptop laptop);
 public void deletelaptop(int laptopId);

}
package com.java2study.service;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.java2study.dao.LaptopDao;
import com.java2study.model.Laptop;
@Service
public class LaptopServiceImpl implements LaptopService {
 @Autowired
 private LaptopDao  laptopDao;
 @Override
 public void addLaptop(Laptop laptop) {
  // TODO Auto-generated method stub
  laptopDao.addLaptop(laptop);
 }

 @Override
 public List listLaptop() {
  return laptopDao.listLaptop();
 }

 @Override
 public Laptop getLaptopById(int laptopId) {
  // TODO Auto-generated method stub
  return laptopDao.getLaptopById(laptopId);
 }

 @Override
 public void updateLaptop(Laptop laptop) {
  // TODO Auto-generated method stub
  laptopDao.updateLaptop(laptop);

 }

 @Override
 public void deletelaptop(int laptopId) {
  laptopDao.deletelaptop(laptopId);

 }

}
We need to declare the Service implementatioin class with @Service annotation.
Now create Controller class and annotate with @Controller
LaptopController.java
package com.java2study.controller;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

import com.java2study.model.Laptop;
import com.java2study.service.LaptopService;
@Controller
public class LaptopController {
 @Autowired(required=true)
 private LaptopService laptopService;

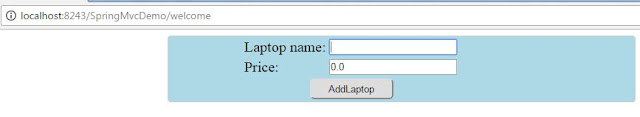

 @RequestMapping("/welcome")
 public String welcome(Model model) {
    Laptop laptop = new Laptop();
    model.addAttribute("laptop", laptop);
     return "laptopform";

 }

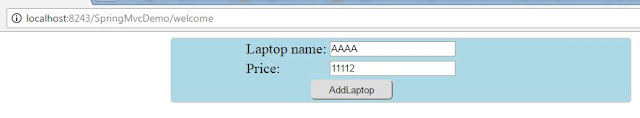

 @RequestMapping("addLaptop")
 public ModelAndView registerUser(@ModelAttribute("laptop") Laptop laptop,BindingResult result
   ) {
  System.out.println("hello");

  laptopService.addLaptop(laptop);
  return new ModelAndView("redirect:listlaptop");
 }

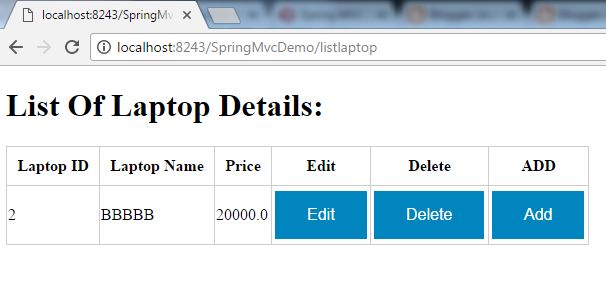

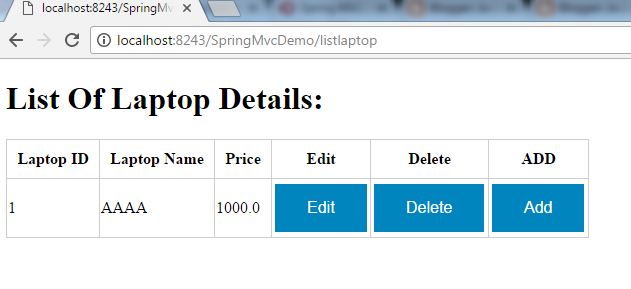

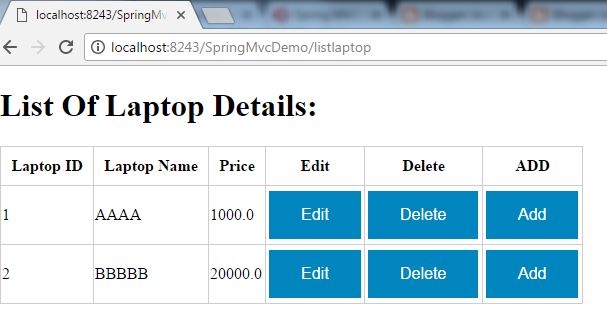

 @RequestMapping("listlaptop")
 public ModelAndView getList() {
  List laptopList = laptopService.listLaptop();
  return new ModelAndView("listlaptop","laptopList",laptopList);
 }

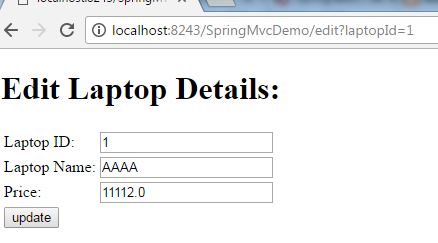

 @RequestMapping("edit")
 public ModelAndView editLaptop(@RequestParam int laptopId,@ModelAttribute Laptop laptop) {
  System.out.println("i love you");
  Laptop laptopObject = laptopService.getLaptopById(laptopId);
  return new ModelAndView("Edit","laptopObject",laptopObject);
 }
 @RequestMapping("update")
 public ModelAndView update(@ModelAttribute Laptop laptop) {

  laptopService.updateLaptop(laptop);

  return new ModelAndView("redirect:listlaptop");
 }
 @RequestMapping("delete")
 public ModelAndView deleteLaptop(@RequestParam int laptopId) {
  laptopService.deletelaptop(laptopId);
  return new ModelAndView("redirect:listlaptop");
 }
}
Now create View Pages
laptopform.jsp
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
    <%@ taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<style type="text/css">
form {
    border: 1px solid #cdcdcd;
    width: 32%;
    background: lightblue;
    border-radius: 4px;
    align: center;
    margin-left: 310px;
    padding-left:100px;
    padding-right:100px;
    }
    .td{
    font-size:16px;
    }
</style>
</head>
<body>
<form:form  modelAttribute="laptop" method="post" action="addLaptop">

   <table>
     <tr>
                <td style = "font-size:20px;">Laptop name:</td>
                <td><form:input path="name" /></td>
                </tr>
                <tr>
                <td style = "font-size:20px;">Price:</td>
                <td><form:input path="price" /></td>
                </tr>
   <tr>
                <td colspan="3" align="center" ><input  style = "border-radius: 6px;text-align: center; width:113px;height:28px;"
       type="submit" value="AddLaptop" />
     </td>
    </tr>
   </table>
</form:form>

</body>
</html>
listlaptop.jsp
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
    <%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<style type="text/css">

tr{
  background:#fff;
  border:1px solid #cdcdcd;
}
.button {
    background-color:#0085be ;
    border: none;
    color: white;
    padding: 15px 32px;
    text-align: center;
    text-decoration: none;
    display: inline-block;
    font-size: 16px;
    margin: 4px 2px;
    cursor: pointer;
}
table tbody tr th{
padding:10px;
}
</style>
</head>
<body>
<h1>List Of Laptop Details:</h1>
<c:if test="${!empty laptopList}">
   <table border="1" style = "border-collapse: collapse;">
    <tr>

     <th>Laptop ID</th>
     <th>Laptop Name</th>
     <th>Price</th>
     <th>Edit</th>
     <th>Delete</th>
     <th>ADD</th>

    </tr>
    <c:forEach items="${laptopList}" var="laptop">
     <tr>
      <td><c:out value="${laptop.laptopId}" />
      <td><c:out value="${laptop.name}" />
      </td>
      <td><c:out value="${laptop.price}" />
      </td>
      <td><a href="edit?laptopId=${laptop.laptopId}"><input type="button" class="button" value="Edit"></a></td>
      <td><a href="delete?laptopId=${laptop.laptopId}"><input type="button" class="button" value="Delete"></a></td>
      <td><a href="welcome"><input type="button" class="button" value="Add"></a></td>
      </tr>
    </c:forEach>
   </table>
  </c:if>

</body>
</html>
Edit.jsp
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
    <%@ taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
</head>
<body>
<h1>Edit Laptop  Details:</h1>
<form:form  modelAttribute="laptop" method="post" action="update">
   <table>
   <tr>
            <td>Laptop ID:</td>
            <td><form:input path="laptopId" value="${laptopObject.laptopId}" /></td>
            </tr>
   <tr>
            <td><form:label path="name">Laptop Name:</form:label></td>
            <td><form:input path="name"  value="${laptopObject.name}"/></td>
            </tr>
            <tr>
            <td>Price:</td>
            <td><form:input path="price" value="${laptopObject.price}" /></td>
            </tr>
     <tr>
     <td><input type="submit" value="update" />
     </td>
        </tr>
   </table>
  </form:form>
</body>
</html>
Now Run This Web application as Run As-->Run on server in Ecclipse
Output
